Sugar Mill Toothed Roller Pressure Feeders are used to crush the cane in sugar mill industries. They have teeth structures on their surfaces. These teeth improve cane feed and gripping. Eventually it leads to better juice extraction and reduces energy consumption. They have modern tooth geometries, precise housings, and hydraulic pressure systems. Proper installations and maintenance ensures longevity. TRPFs are still advancing and moving to 5 roller unit mills

What are Sugar Mill Toothed Roller Pressure Feeders?

Working Sugar Mill Toothed Roller Pressure Feeders

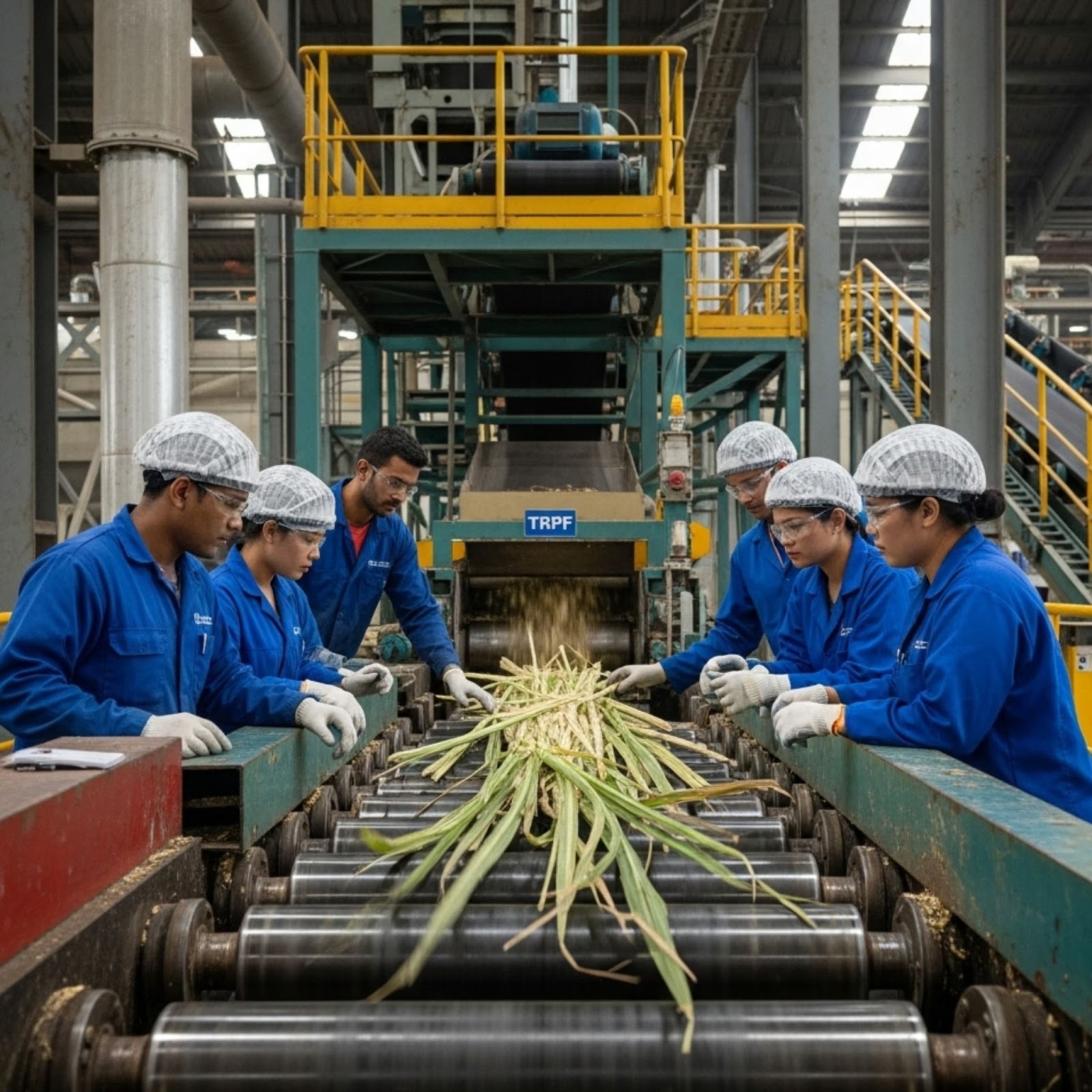

Sugar Mill Toothed Roller Pressure Feeders are a modern type of sugar mill rollers. Their primary role is to feed the sugar cane into the crushing zone. But, they have specific tooth profiles designed on their surfaces for better gripping. Furthermore, they use hydraulic systems for pressure applications.

Significance of Sugar Mill Toothed Roller Pressure Feeders

Sugar Mill Toothed Roller Pressure Feeders have the following benefits.

1. Higher Juice Extraction: Sugar Mill Toothed Roller Pressure Feeders can increase the juice extraction by 2-4%.
2. Higher Capacity: Sugar Mill Toothed Roller Pressure Feeders can handle 400 to 800 tons of cane per hour.
3. Reduced Energy Consumption: Sugar Mill Toothed Roller Pressure Feeders can reduce the energy consumption by 10-15%.
4. Improved Gripping: The toothed design and angle allows 1-2% additional juice extracted.
5. Better Bagase Collection: Sugar Mill Toothed Roller Pressure Feeders tighten the cane to 30-35% bulk density.


Design and Parts of Sugar Mill Toothed Roller Pressure Feeders

Sugar mill toothed roller pressure feeders have the following parts: Toothed surfaces, housing, pressure chute, and drive options.

Design and Parts of Sugar Mill Toothed Roller Pressure Feeders

Toothed Surfaces

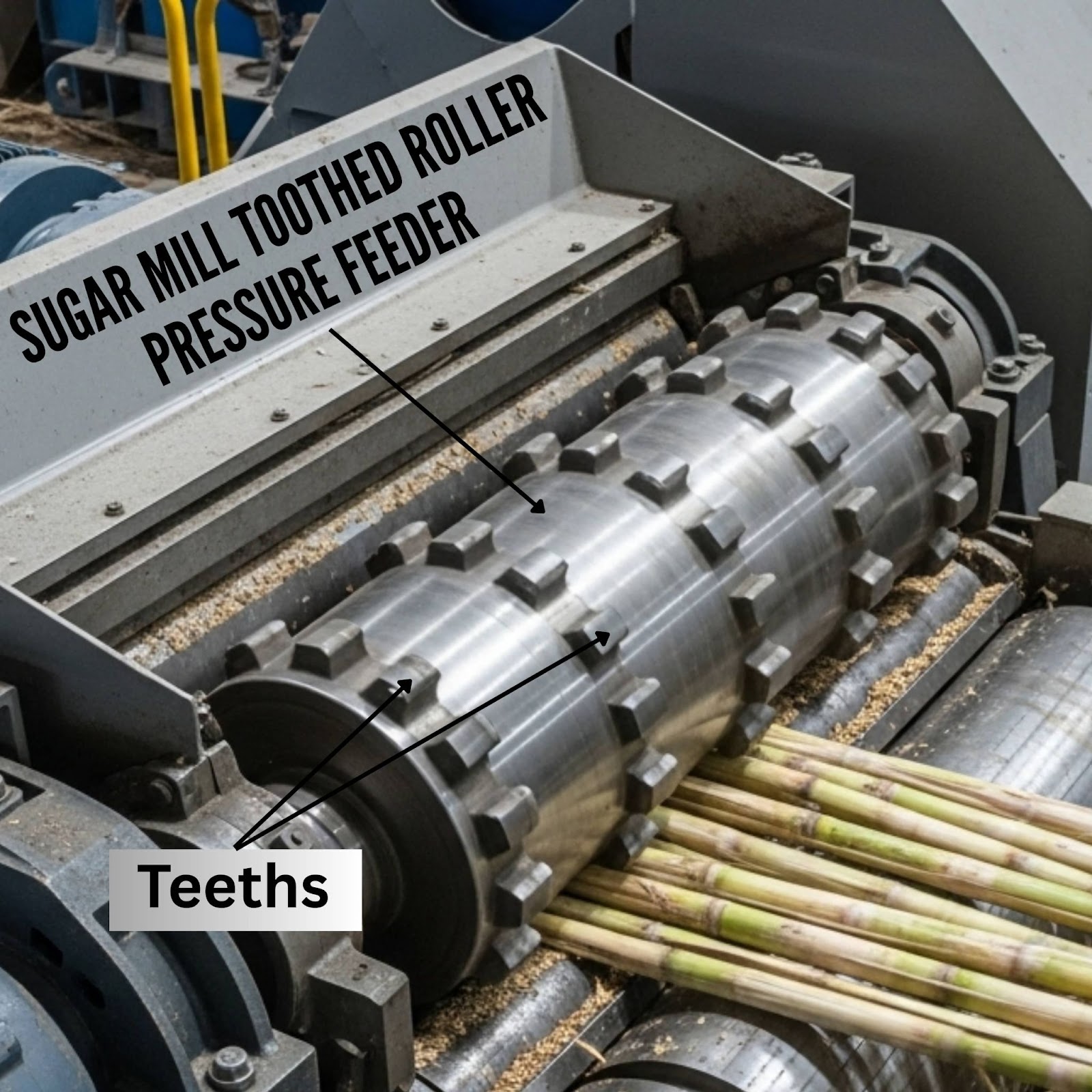

The tooth are designed in a precise arrangement. These toothed surfaces  provide better gripping to the cane. Furthermore, they provide a high density bagasse blanket out of the mill. They are made from EN24 alloy steel for higher strength.

Housings

The housing is a framework that holds Sugar Mill Toothed Roller Pressure Feeders. It precisely aligns the rollers position, bearings, and the hydraulic loading system. They are constructed from thicker steels. Furthermore, the roller is applied with corrosion-resistant lining to prevent corrosion.

Pressure chute geometry and lining

The pressure chute is a channel that guides the cane into the crushing zone. The proper design ensures smooth operation and prevents blockage.

Proper design means that that chute should have an accurate inclination angle, length and openings.

The pressure chute is lined with low friction materials. These materials include stainless steel, Ultra-High Molecular Weight Polyethylene, or Abrasion-Resistant Plates. This reduces corrosions and smooth operations.

Drive options

Sugar Mill Toothed Roller Pressure Feeders can use a main roller drive or separate drive.

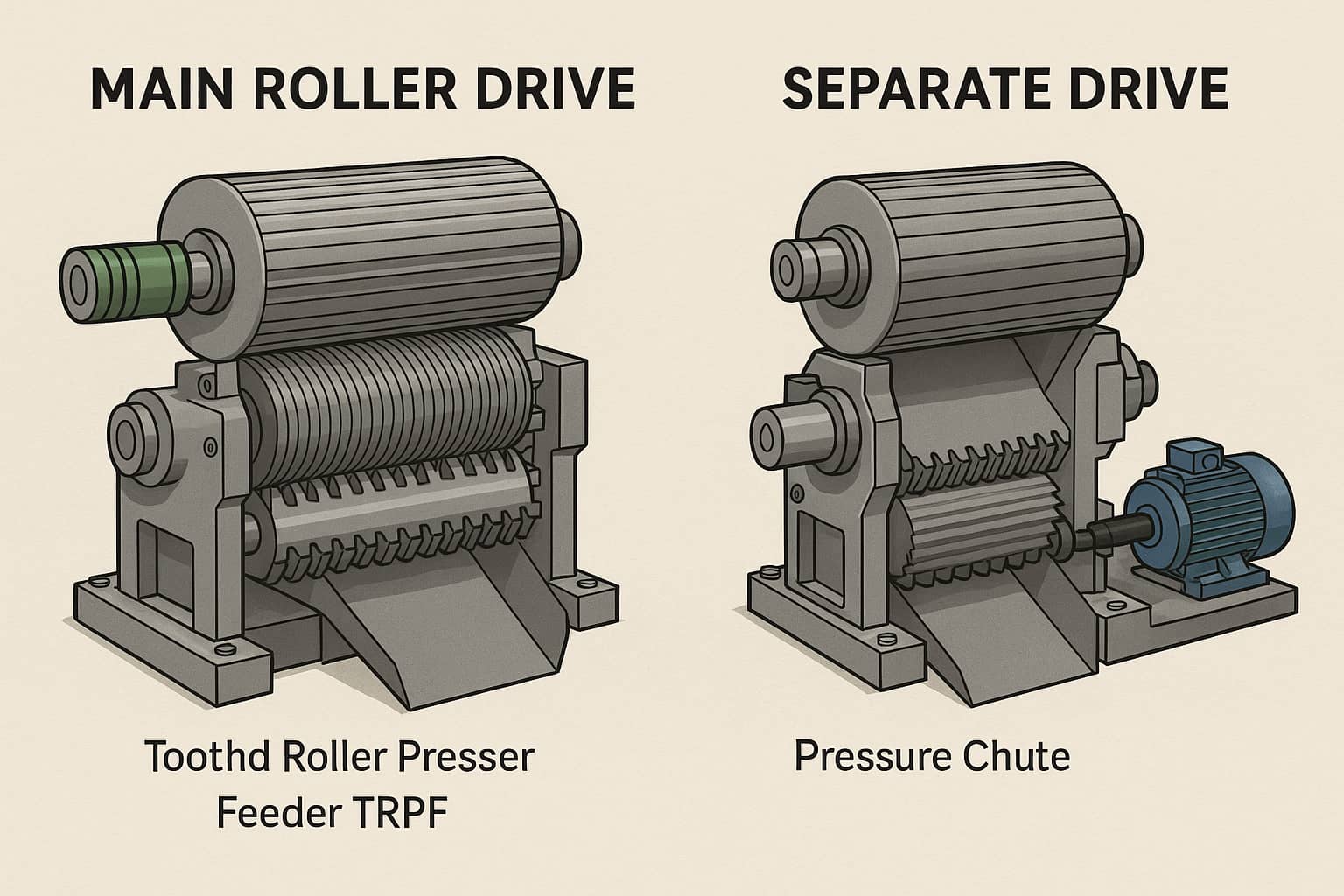

Main Roller Drive vs Separate Drive

Main Roller Drive:

In this operation the mill’s top roller or feed roller directly drives the sugar mill Toothed Roller Pressure Feeders. It is a simple operation. Moreover, the speed of the TRPF is synchronised with the top roller.

However, it has a limited independent role, increased chances of cane choking and blockages.

Separate Drive

The sugar mill Toothed Roller Pressure Feeders have separate dedicated motors. These motors only operate the TRPFs. It allows speed controls, reduced stress and reduced energy consumption for the sugar mill Toothed Roller Pressure Feeders.

However, they have higher initial cost and requires more space for operating.

Operating Principles

The sugar mill toothed roller pressure feeders have a proper cane feeding, crushing and collection points. Along with it the pressure given and the tooth geometry influences the function immensely.

Material feeding, compaction and discharge process

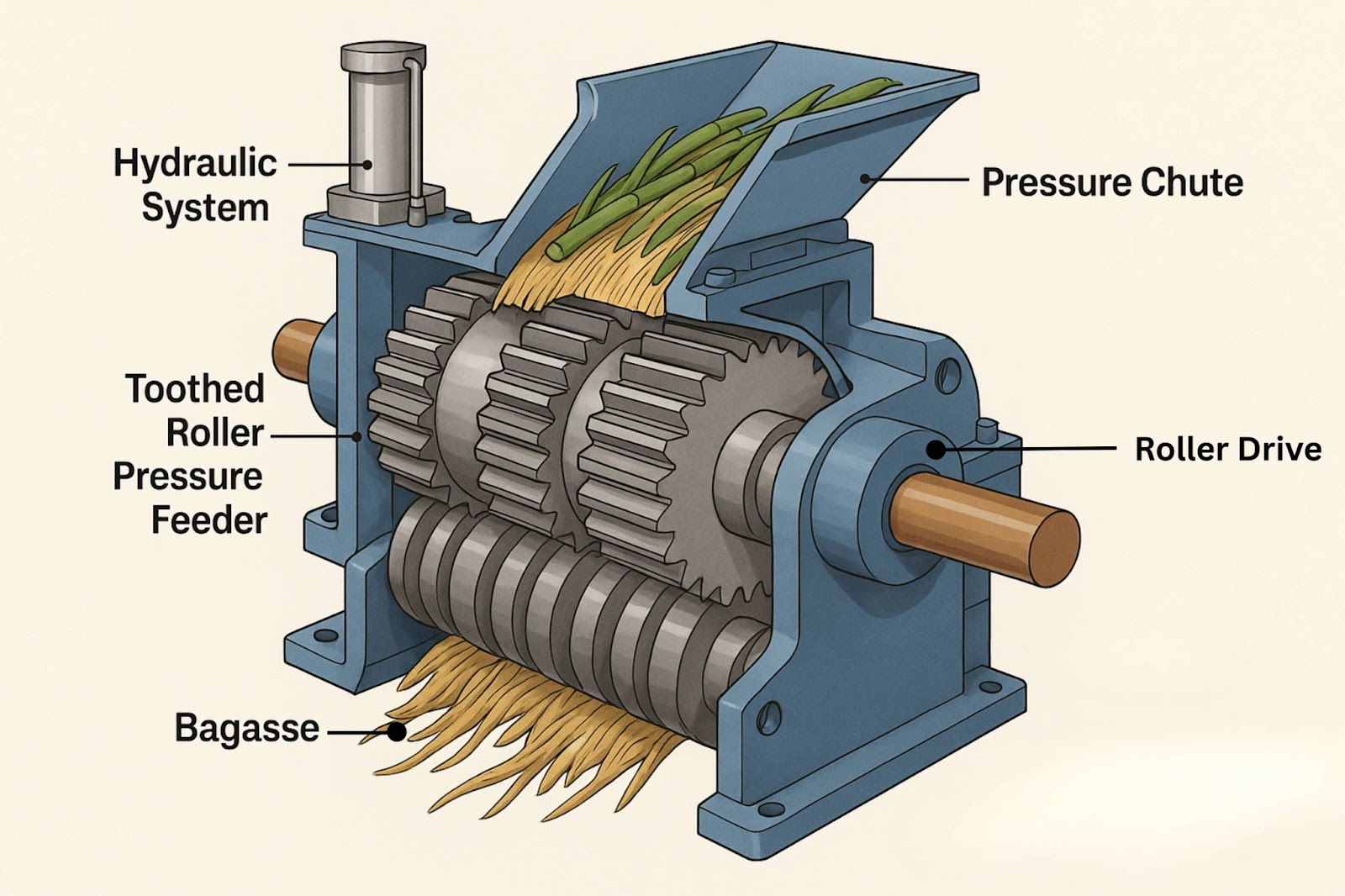

Material feeding, compaction and discharge process of sugar mill toothed roller pressure feeders

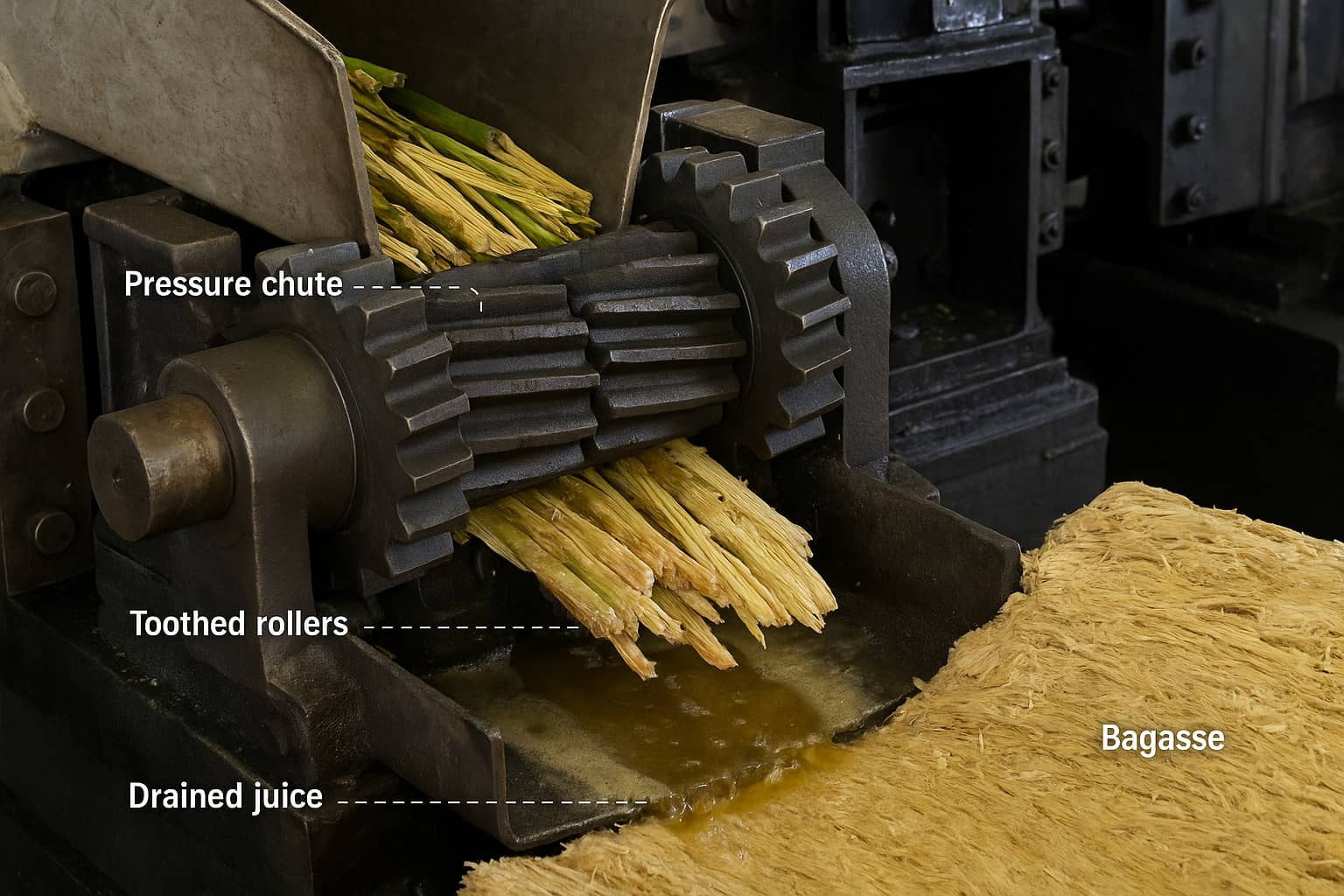

The process starts when the cane enters the pressure chute. The cane then passes between the toothed rollers. The toothed rollers grip the cane efficiently.

As the cane passes through the nip, the toothed rollers apply a high level of force. The drained juice passes through the dedicated channels. For modern sugar mill Toothed Roller Pressure Feeders, internal drainage channels and perforations are used for juice drainage.

After the cane is crushed between multiple toothed rollers, the bagasse is collected. The bagasse is collected in a blanket form.

Pressure generation

Modern TRPF systems use floating roller mechanisms or hydraulic loading systems to apply pressures. These systems can adjust according to the cane moisture, fiber content, and feed density. They ensure steady operation, and avoid blockage or downtimes.

Influence of tooth geometry and gap settings

The accurate arrangement of tooth profile determines the efficiency of sugar mill Toothed Roller Pressure Feeders. It is important to have the accurate shape, depth, pitch and angle of the tooth.

Gap Settings is the nip. It means the distance which is between the two rollers. These gaps should be adjusted according to the cane type, capacity and the efficiency of the mill. In case of inaccurate gaps, it can lead to blockages, cane slippage and reduce efficiency.

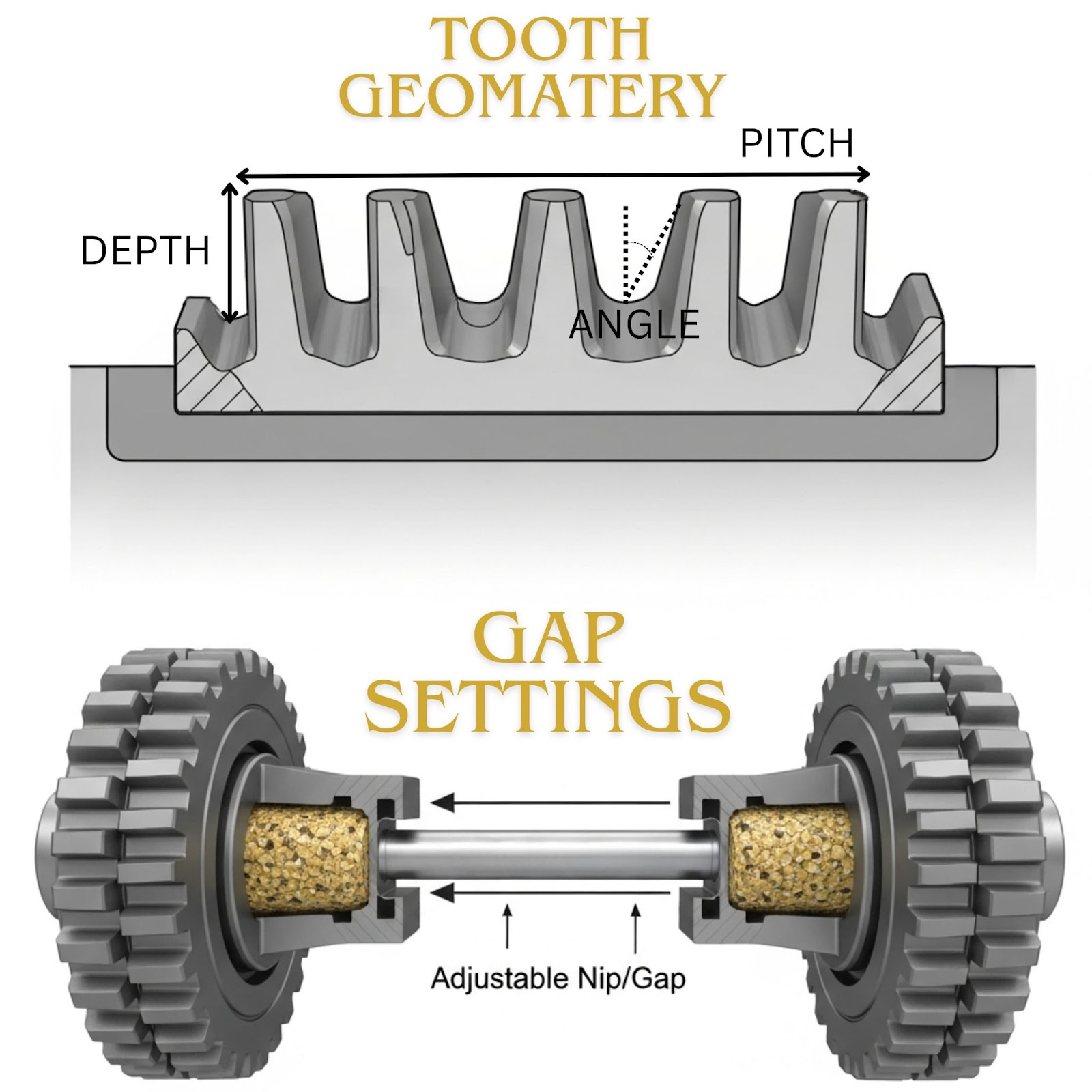

Tooth geometry and Gap Settings

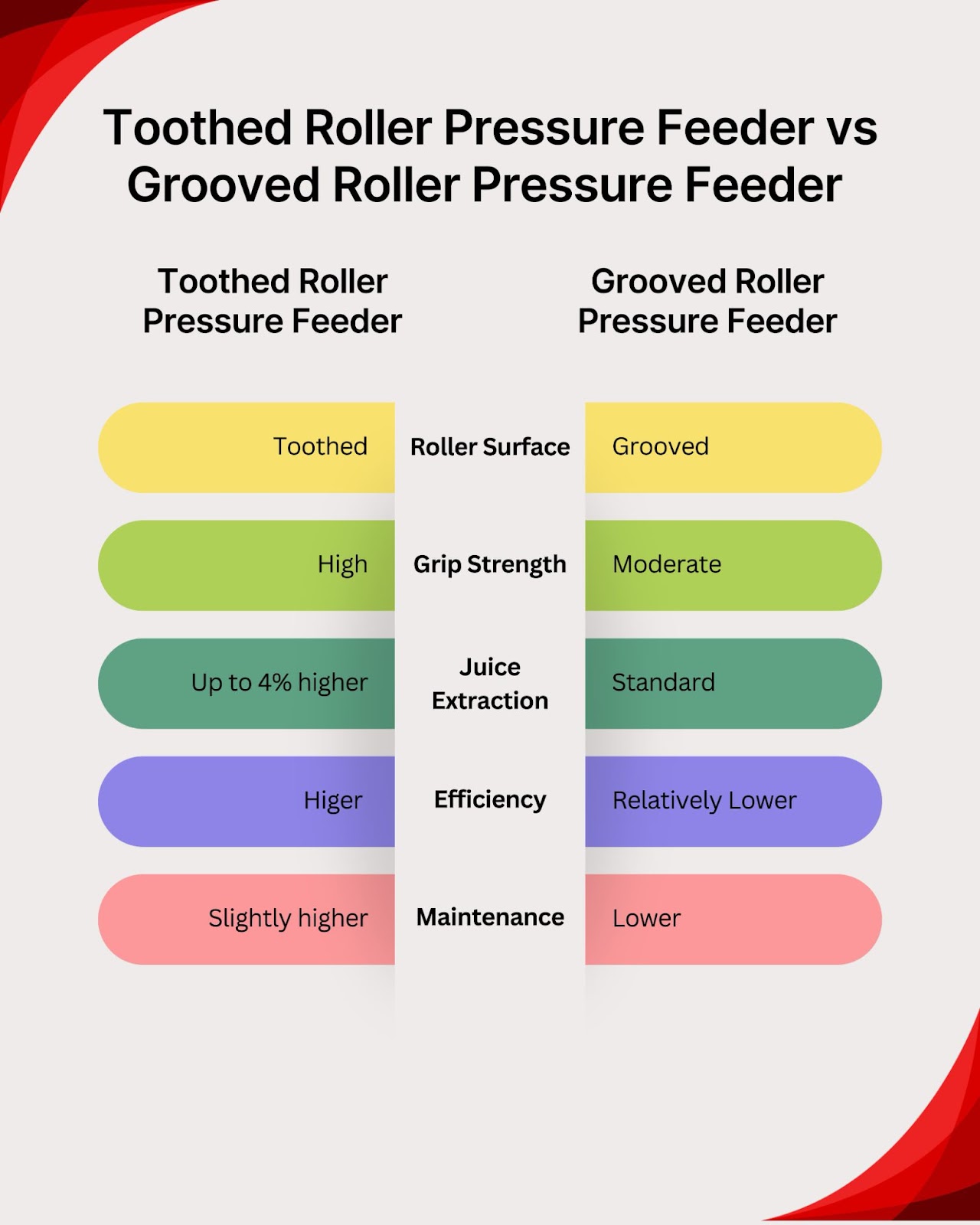

Toothed Roller Pressure Feeder vs Grooved Roller Pressure Feeder

Types and Variations

Sugar Mill toothed roller pressure feeders differ from Grooved roller pressure feeders  in their design. GRPFs use rollers with smooth grooves that grip the cane. On the other hand TRPFs have aggressive tooth profiles that have stronger gripping.

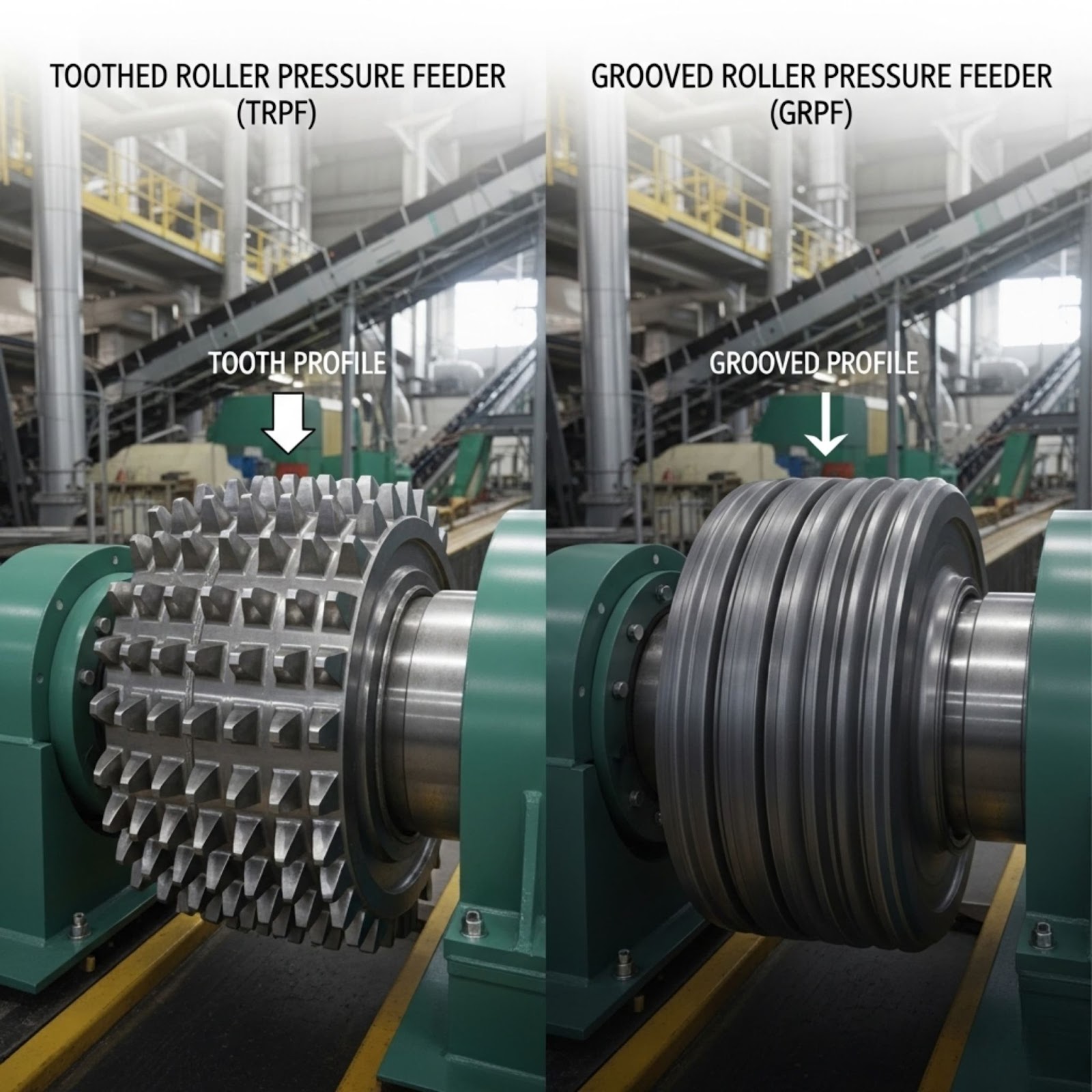

Toothed Roller Pressure Feeder vs Grooved Roller Pressure Feeder

Toothed Roller Pressure Feeder vs Grooved Roller Pressure Feeder

Short Space TRPF adaptations

The SSTRPF is designed to be installed in mills with limited space. The discharge point of the TRPF is placed very close to the feeding nip. Thus the space requirements are reduced.

SSTRPF installations provided 3.8% increase in juice extraction. They occupy 30–40% less space than conventional units.

SSTRPF Design Changes

• Compact Integration: SSTRPFs are often designed as highly integrated. This means that the pressure feeders are not placed away from the crushing unit. Rathar, the pressure feeders are placed in the mill’s main structure.
• Minimalist Pressure Chute: The traditional long chute is replaced by an extremely short, and steep, slide.
• Optimized Contact Angle: Due to the short chute, the sugarcane enters the crushing point at a better and tighter angle.

Industry Applications

Sugar Mill toothed roller pressure feeders are now widely used throughout the world. This is because they increase the mills capacity from 20-50% per day.  They are used as initial feeding rollers which maintain feed uniformity, and reduce energy consumption. Mills that process 600 TCH use TRPFs with independent drives.

Sugar milling and juice extraction processes

The extraction process is broken down in three main steps.

1. Cane Preparation

First the raw sugarcane undergoes mechanical preparation. The shedders are used to cut and open the cane cells. The result is a fluffy prepared cane mat. It is then transferred by the  conveyor belts.

2. Juice Extraction

Sugar mill toothed roller pressure feeders are used in the first crushing mill. The teeths efficiently grip the prepared cane. The cane passes through the nip and the rollers apply pressure on it. A large amount of juice is extracted in this first mill. The juice travels through dedicated channels out of the mill.

Modern TRPFs have perforated rollers. These provide an internal drainage system and increase the juice extraction..

3. Beyond the First Mill

The Sugar mill toothed roller pressure feeders are placed in a tandem. The cane passes through all these rollers, gets further crushed and the juice is extracted at each stage.

Finally the blanket of bagasse is collected at the end of the crushing. This baggage is an efficient fuel for mills.

Performance and Practical Considerations

Feed rate, capacity and pressure adjustment

Standard toothed roller pressure feeders can process 400–800 tons of cane per hour. This can vary according to roller size and speed.

The compaction pressure per roller pair ranges from 30 to 80 tons.  It is adjusted according to cane quality, roller design, and mill capacity.

Energy consumption

Toothed roller pressure feeders can reduce energy consumption by 10–20%. These stats are taken when TRPFs were connected to real-time pressure control.

Wear resistance, maintenance intervals and troubleshooting

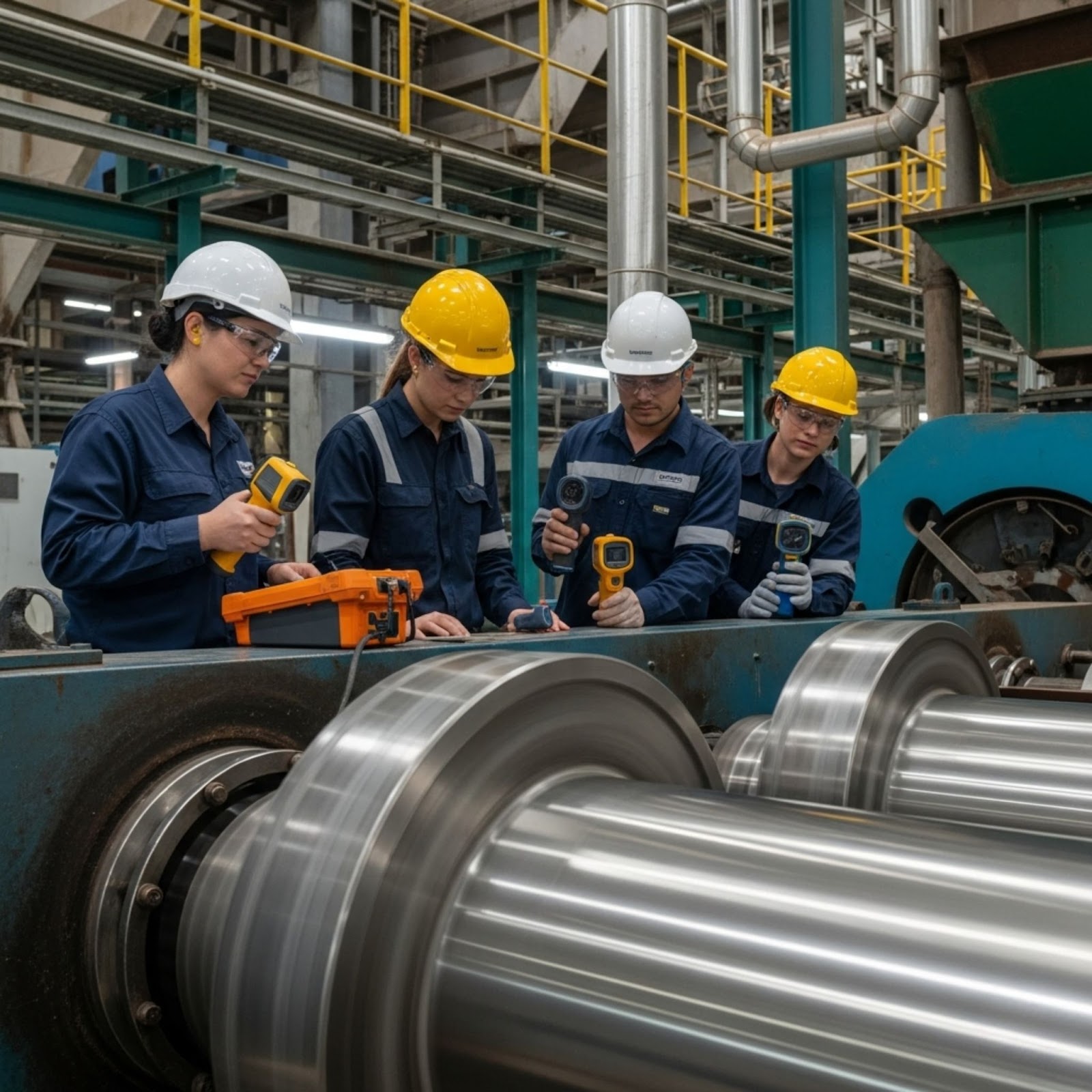

Rollers with tungsten carbide coatings last 1,000–1,500 crushing hours. After that they require resurfacing. It should be remembered that only the surface needs resurfacing. The roller’s body does not get easily damaged and lasts for years.

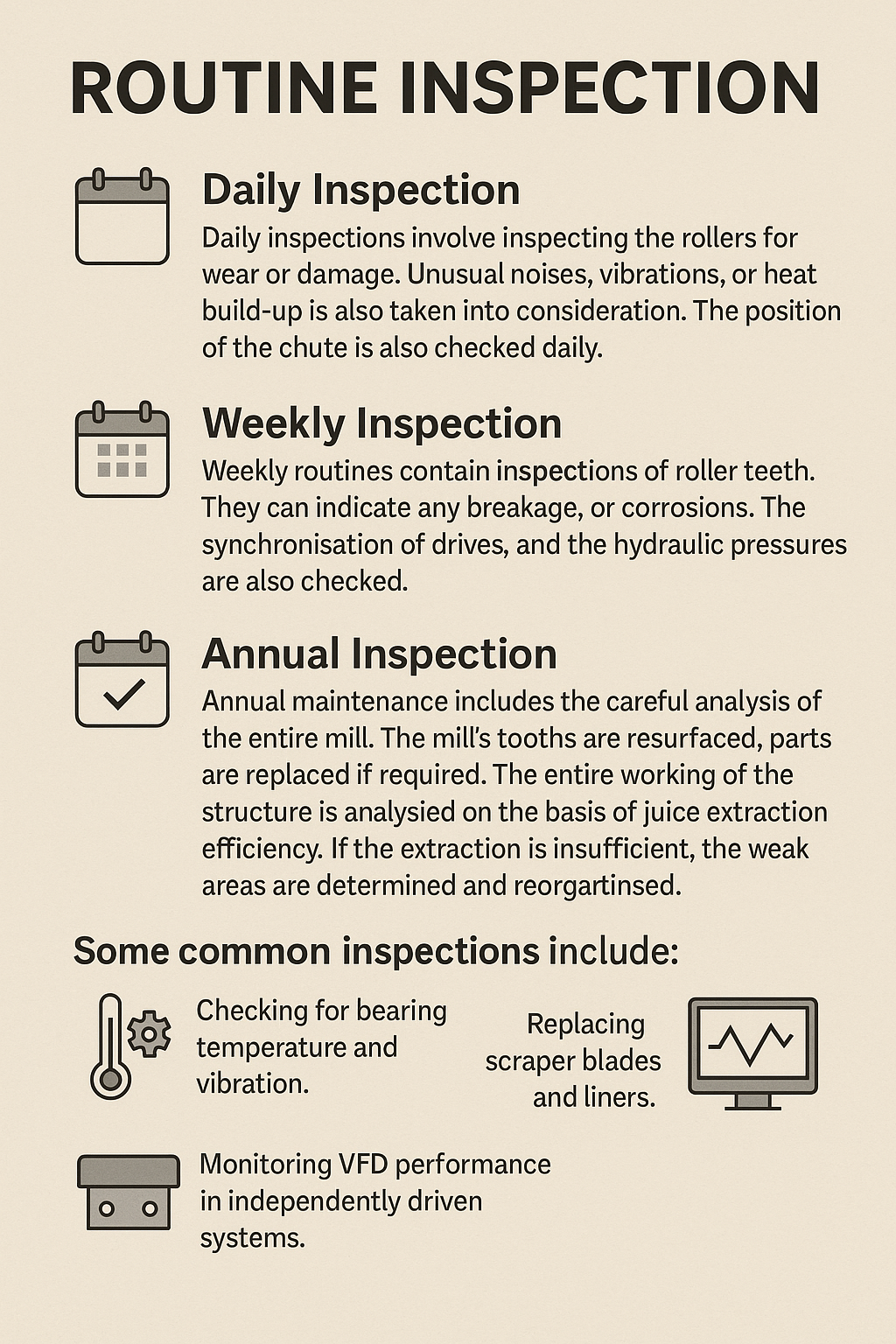

Maintenance needs to be done on a regular basis. The routine maintenance includes:

• Weekly lubrication of bearings and scrapers.

• Monthly inspection of tooth wear and roller alignment.

• Seasonal hardfacing of the roller surface.

Installation and Commissioning Best Practices

Alignment and Installation

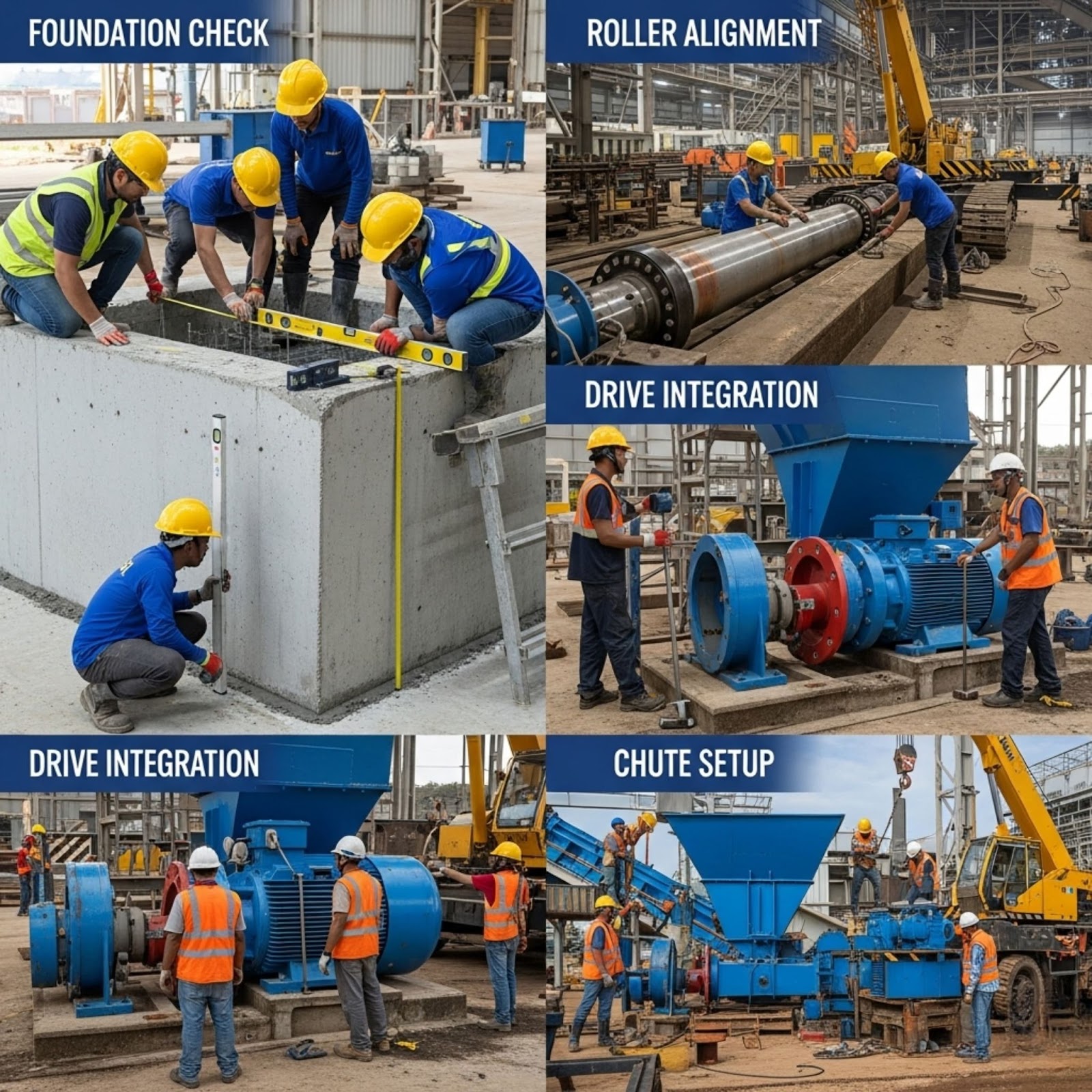

Steps Involved In The Installation of Sugar Mill Toothed Roller Pressure Feeders

The following steps should be followed before installing the sugar mill toothed roller pressure feeders.

1. Foundation Verification

Before setting up the sugar mill toothed roller pressure feeders the Foundation Verification is important. The foundation’s dimensional accuracy, levelness, and structure should be verified. Laser alignment checks are used for detailed engineering checks. Any issue found should be resolved.

2. Roller Parallelism and Gap Setting:

The TRPF rollers must be set perfectly parallel to each other and perpendicular to the direction of cane flow. This involves Laser Tracking Systems, Precise Shim Adjustments and Bearing Housing Alignment.

3. Drive Train Alignment:

The motor, gearbox and roller shaft are aligned and paramounted. This is only done for separately driven TRPFs.

4. Pressure Chute Integration:

The pressure chute must be perfectly aligned with both: the TRPF discharge and the main mill’s feed nip. It ensures the continuous operation of the mill.

Safety and Compliance

Safety Measures For Sugar Mill Toothed Roller Pressure Feeders

• Risk Assessment and Method Statements: A detailed Job Safety Analysis must be developed for every installation. It should include the hazards and safety precautions.
• Emergency stops: These are used to abruptly stop the process.
• Hydraulic System Safety: These are used to set correct pressure settings, and leak-free connections. Staff must be trained on hydraulic hazards too.
• Electrical Safety: Proper wiring, grounding, and overcurrent protection should be ensured.
• Environmental Compliance: According to the environmental regulations, proper handling and disposal of lubricants should be followed.

Initial setup and testing procedures

After installation, TRPF systems undergo the following testing.

1. Dry run:

These are used  to check rotation and vibration of the sugar mill toothed roller pressure feeder. These are done without the cane feedings and checks the rollers balance.

Dry Run Testing Phase of Sugar Mill Toothed Roller Pressure Feeder

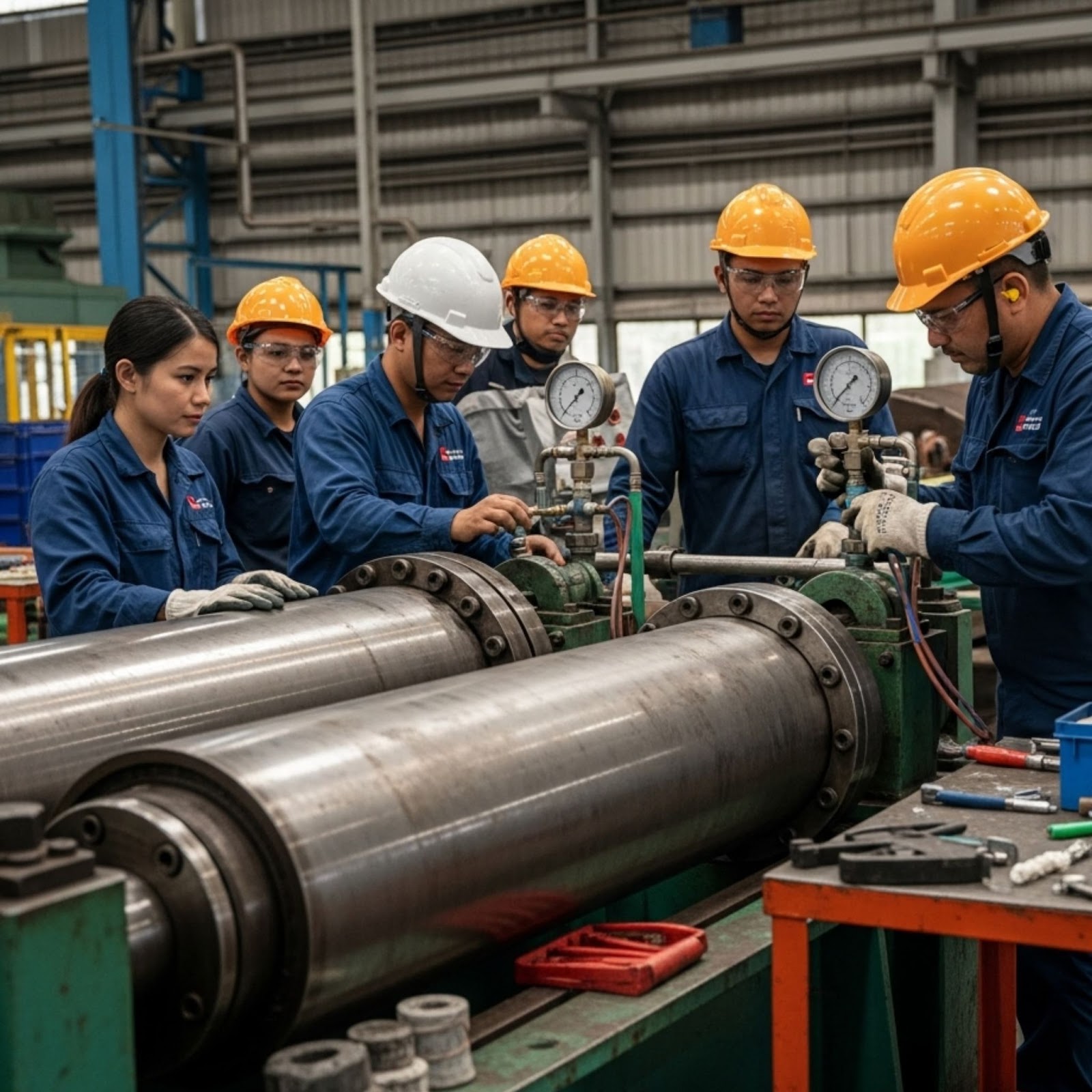

Pressure checks:

Hydraulic pressure tests are carried. They ensure that the rollers exert the force uniformly.

Pressure Testing Phase of Sugar Mill Toothed Roller Pressure Feeder

Progressive feed testing:

The rollers are tested by feeding sugar cane. This ensures that the sugar mill toothed roller pressure feeders work accurately. The cane gripping, crushing, and juice drainage systems are checked carefully.

Cane Feed Testing Phase of Sugar Mill Toothed Roller Pressure Feeder

Maintenance and Troubleshooting

Maintenance for Sugar Mill Toothed Roller Pressure Feeders

Common Issues

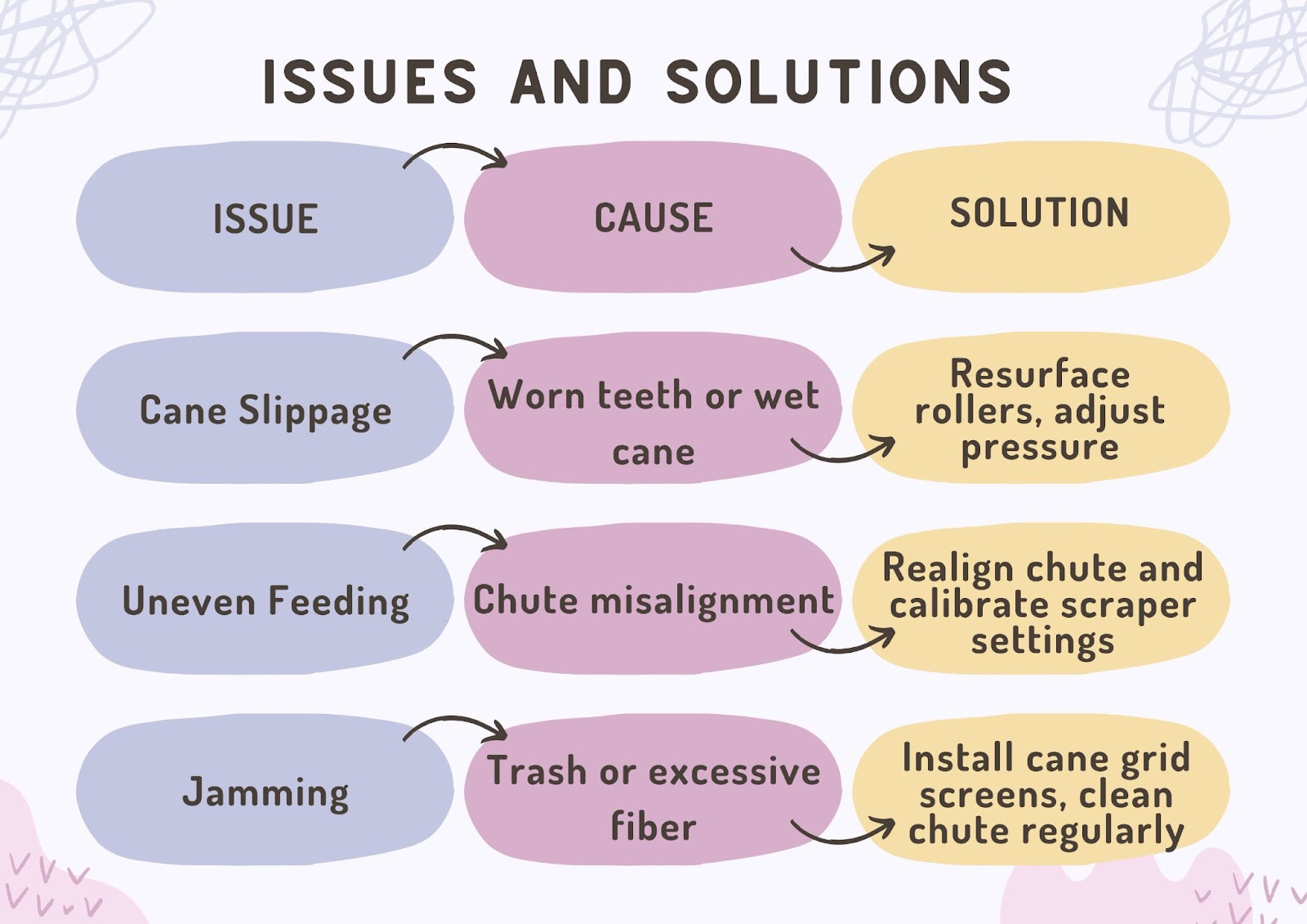

Issues, Causes & Solutions for Sugar Mill Toothed Roller Pressure Feeders

Repair techniques and spare parts management

Sugar Mills should always have some repair techniques. These specialists are important for accurate working of sugar mill toothed roller pressure feeders. These techniques include:

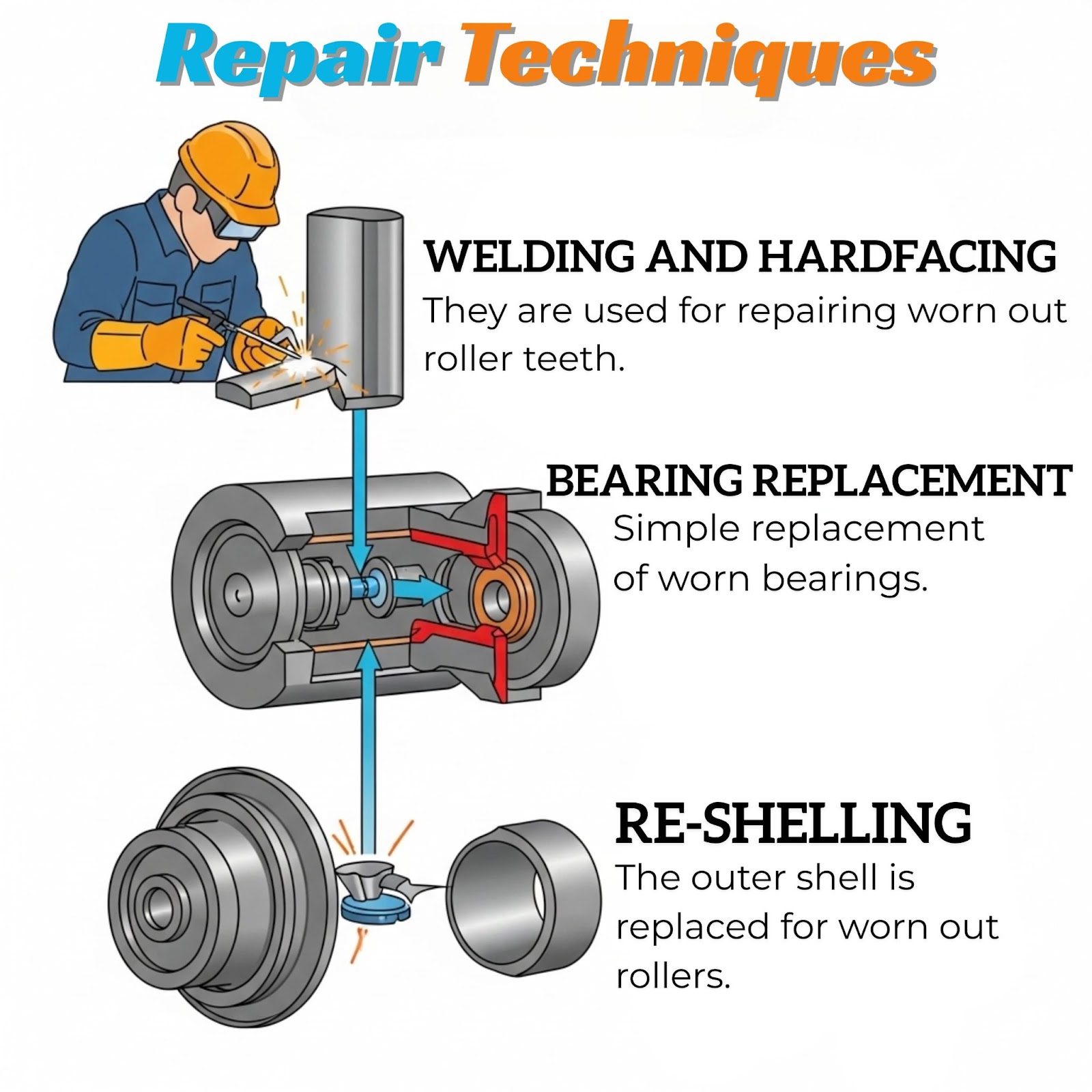

Common Repair Techniques For Sugar Mill Toothed Roller Pressure Feeders

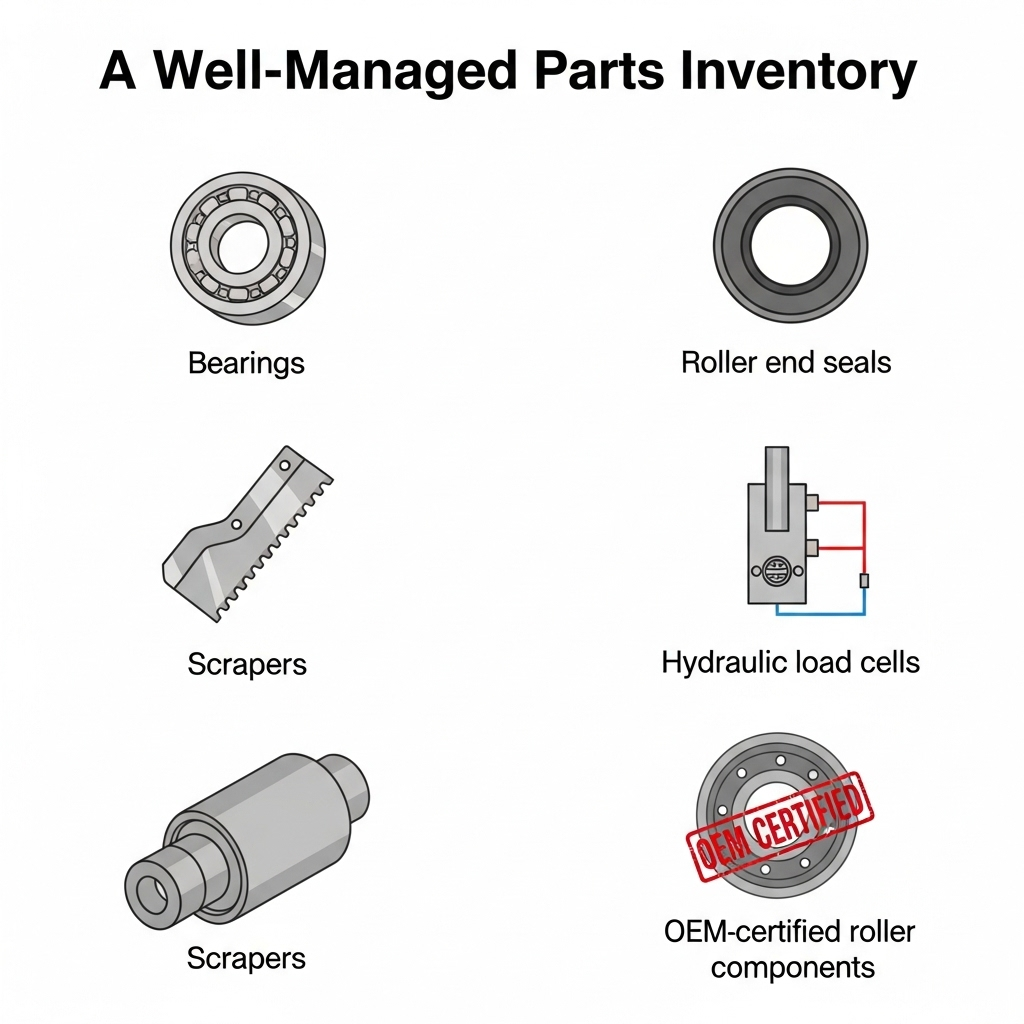

Common Inventory for Flawless Running for Sugar Mill Toothed Roller Pressure Feeders

Case Studies and Real-World Examples

A Southeast Asian sugar mill introduced a 5 roller unit with toothed roller pressure feeders.  They added 2 additional rollers in the typical 3 roller unit. The structure is as follows.

Five Unit Sugar Mill Roller’s Functionality

The introduction of 5 roller sugar mill toothed roller pressure feeders lead to:

• 3.8% increase in juice extraction

• 12% reduction in power usage

• 28% decrease in unplanned downtime


Future Trends and Innovations

Smart Feeders and Industry 4.0 Integration

IoT sensors are now fitted in sugar mill toothed roller pressure feeders. They ensure accurate rotation, pressure, and roller temperature. These devices also support remote monitoring. Furthermore they predict maintenance using cloud-based SCADA platforms.

Advanced Materials, Coatings and Design Optimizations

Sugar mill toothed roller pressure feeders now use:

• Ceramic coatings on roller tips: They enhance corrosion resistance.

• Polymer composite housings: They reduce the roller’s weight.

• Optimized tooth geometries: Accurate designings of the rollers.


Automation and Remote Monitoring Capabilities

Fully automated sugar mill toothed roller pressure feeders have reduced the human input. They can automatically adjust roller gaps and speeds. These rollers  ensure constant throughput regardless of cane quality.

Conclusion

Toothed Roller Pressure Feeders have gained their importance in sugar mills. They offer high  juice extraction, and reduced power consumption. Their modern design and operation have transformed the sugar mill industries. Long term efficiency is achieved by proper installation and regular maintenance. TRPFs are still advancing and moving to 5 roller unit mills.
